Prezzo Basso DEFINITIVE AUDIO TML 10 BU DSP

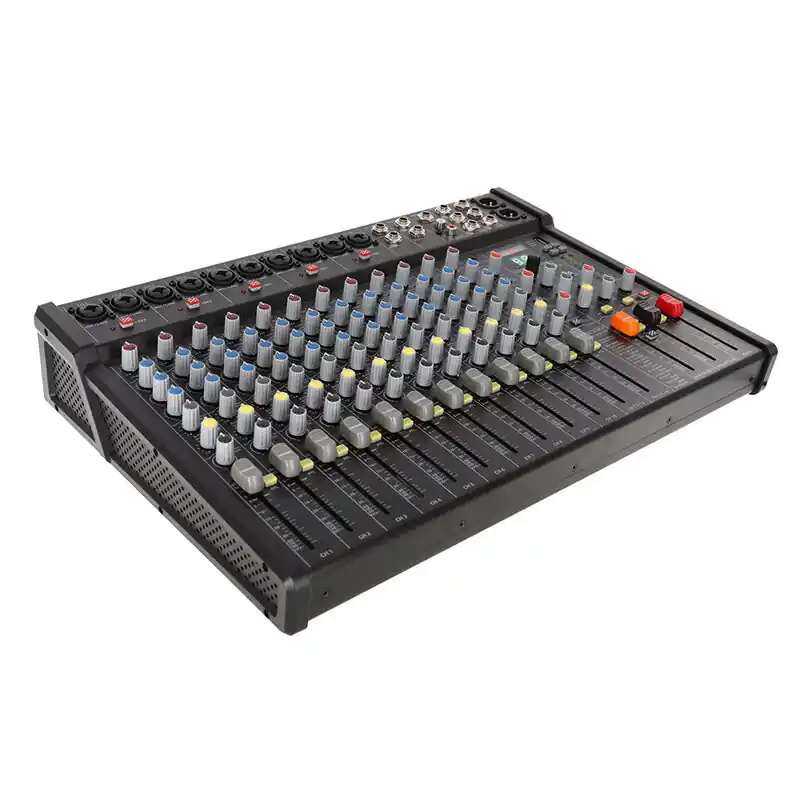

Descrizione TML 10 BU DSP è un mixer analogico a 18 canali dotato di un DSP interno a 99 effetti e di un lettore / registratore USB, di un ricevitore Bluetooth e di uscite XLR bilanciate. Dispone di 10 ingressi Combo microfono / linea XLR / jack con fader lineari da 60 mm. Vantaggi per gli utenti Preamplificatori di alta qualità Versatilità nelle connessioni 99 effetti DSP a 24 bit / 48 kHz Registrazione e riproduzione diretta Adatto per utilizzo fisso o mobile Ambiti di utilizzo Project studio Live (concerti, spettacoli) Locali, sale conferenze e luoghi di culto
SPECIFICHE TECNICHE

Technical characteristics

• 18-channel, 10 mono and 4 stereo mixer
• Superior sound quality preamps
• High quality and precision potentiometer, fully sealed
• 10 XLR / jack Combo inputs with 60 mm linear faders
• MIC input channels with gain control, signal indicator, 3-band tones, low-cut filter, left and right audio-visual distribution buttons, aux and effects send, monitoring control. The XLR inputs have +48 V Phantom power
• 2 x 6.35 mm stereo jack inputs
• 1 x 3.5 mm stereo jack input
• 1 x RCA stereo input
• 2 stereo inputs with gain adjustment, signal light indicator, 3 tone bands, left and right audio and video distribution, aux send and send effects. The other two stereo inputs have volume adjustment, signal indicator, and auxiliary send button
• Bluetooth receiver: V5.1 + BR + EDR + BLE
• DSP with LED display: 99 effects 24 bit / 48 kHz
• MP3 player / recorder: audio decode: MP3 / WAV / APE / FLAC, LED display, USB 1.1 audio interface
• Maximum input level: MIC +10 dBu / line +22 dBu
• Maximum output level: XLR +22 dBu, TRS +20 dBu
• Main meters: 6 segments -20 dB peaked
• Channel meters: 1 signal
• Accurate level display by 3-color, 10-band LEDs
• Frequency response: 20 Hz to 22 kHz ±1 dB
• CMRR (MIC 1 kHz):> 75 dB
• THD+N: <0.05% (channel to be mixed)
• Mono channel: balanced XLR, hot pin 2/cool pin 3, 2 kohm, sensitivity -60 to +10 dBu
• Balanced TRS, hot tip / cold ring, 10 kohm, sensitivity -20 to +20 dBu
• Corrections: treble: ±15 dB 12 kHz, midrange: ±15 dB 2.5 kHz, bass: ± 15 dB 80 Hz
• Stereo channel 1 / 2: unbalanced TRS, hot tip, 20 kohm, sensitivity -20 to +20 dBu
• Stereo channel 1 / 2 EQ: treble ±15 dB 12 kHz, midrange ±15 dB 2.5 kHz, bass ±15 dB 80 Hz
• Stereo channel 3/4: 6.35mm TRS unbalanced
• Power supply: 12 V_DC / 2 A 24 W
• Dimensions (W x H x D): 45.1 x 8.4 x 30.9 cm
• Weight: 9.00 kg
