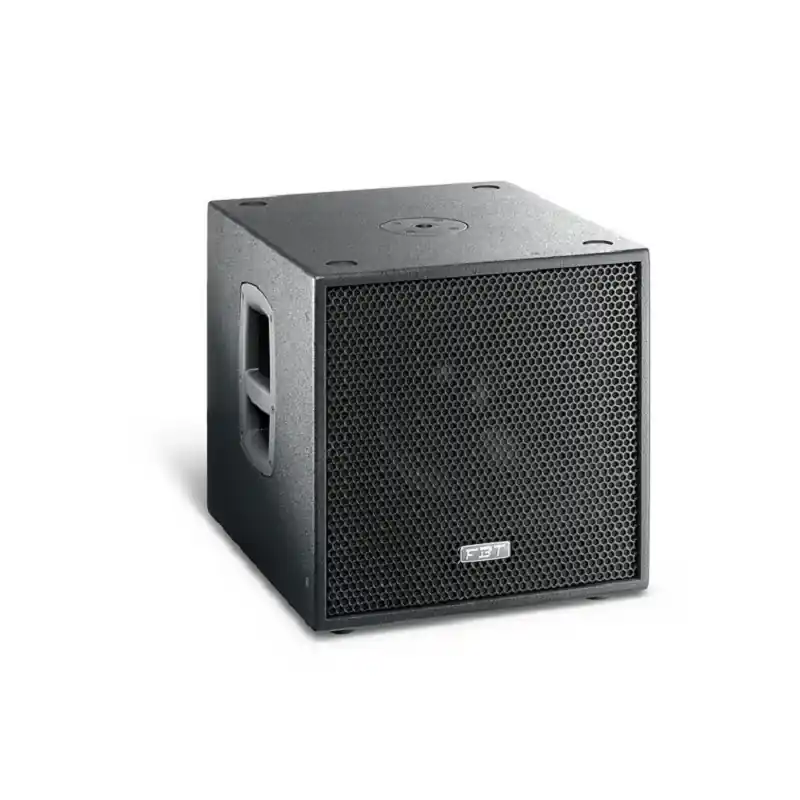

FBT Subline 112SA Scelto Dai Clienti

Descrizione

PROCESSED ACTIVE SUBWOOFER 700W RMS – 130/133DB SPL

The SUBline series has been completely redesigned and consists of 112SA, 115SA, 118SA, 218SA active and 118S and 218S passive subwoofer models, all bass-reflex , built in birch plywood and aimed to extend the low frequency response to a wide range of FBT speaker systems.

Created with the aim to maximize SPL/SIZE ratio, they have Class D amplifiers, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker.

With IN/OUT stereo connectors, it is possible to use only one subwoofer with Left and Right speakers

Optional wheels, ergonomic integrated carrying handles and tour-grade plywood cabinets allow an easy transport

Bass-reflex design with high SPL and punch

320mm (12) high excursion magnet woofer with 75mm (3) voice coil

Frequency response from 40Hz to 140Hz

New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D

Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration

Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch 0°-180°, 3 status LED indicators

15 mm (0.59) birch plywood scratch resistant enclosure with internal bracing

M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles

• Code: 41223
• Configuration: 1 vie
• Built-in amplifier LF/HF: 700 W RMS
• Built-in amplifier peak LF/HF: 1400 W
• Frequency response: 42Hz – 140Hz -6dB
• Low Frequency woofer: 12 – 2.5 coil mm
• Maximum SPL cont/peak:129/133 half-space dB
• Dispersion:omnidirectional HxV
• Input impedance:22 Kohm
• Crossover Frequency:90 or 140Hz KHz
• AC Power requirements:640 VA
• Input connector:stereo XLR with loop, HP out
• Power cord:5/16.4 m
• Net Dimension (WxHxD):430x447x480 / 16.9×21.5×18.9 mm
• Net Weight:23./50.7 kg
• Transport Dimension (WxHxD):530x547x580 / 20.9×21.5×22.8 mm
• Transport Weight:27/59.5 kg
