AUDIOPHONY ConvD2out Saldi

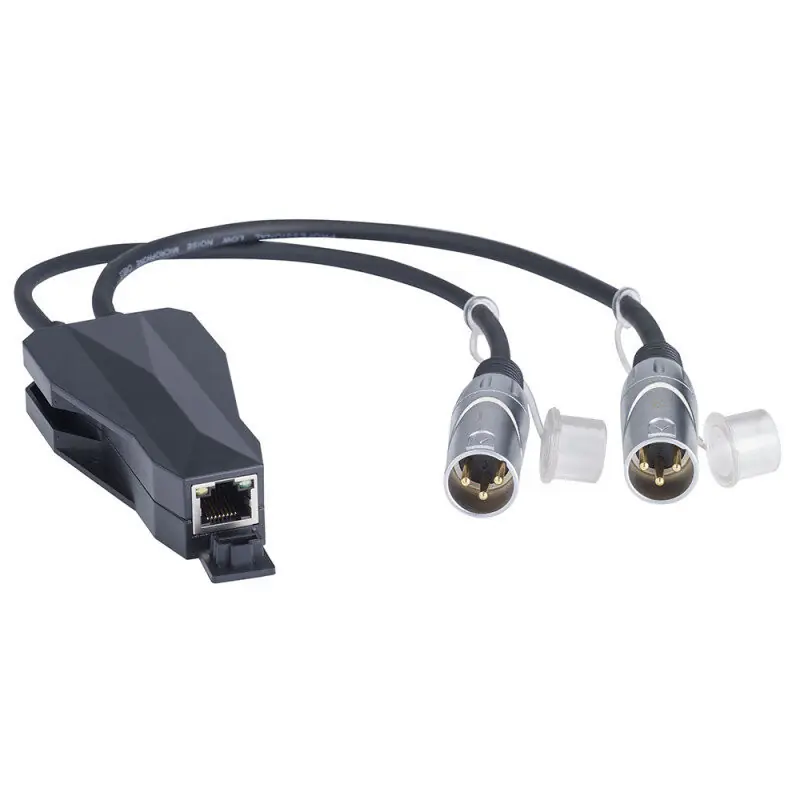

Descrizione Convertitore Dante, da RJ45 a 2 x XLR3-M analogiche.
SPECIFICHE TECNICHE

Technical characteristics

Analog audio

• Maximum output level (balanced): +4 dBu @ 0 dB_FS
• Output impedance: 150 ohm (balanced) or 75 ohm (unbalanced)
• Frequency response: 20 Hz – 20 kHz (± 5 dB)
• Dynamic range:> 100 dB
• SNR:> 100 dB
• THD: < 0.05% @ +4 dBu

Dante audio

• Number of channels: 2 channels
• Sample rate: 44.1 kHz, 48 kHz
• bit depth: 24 bits
• Network speed: 100 MB


Network transmission

• Dante audio, AES67 RTP

Electrical data

• Power consumption: < 2 W
  Power over ethernet: Class 1 802.3af PoE PD compliant

Connectors

• Output connectors: 2 x balanced analog XLR 3-pin
• Dante connector: RJ45 port

Materials

• Housing: black ABS
• Cable: black PVC balanced audio cable, Ø 6 mm

Other data

• Operating temperature: -5 to +60 °C
• Insertion and withdrawal force: 10 – 30 N
• Weight: 165 g
